J599 8core Tactical Fiber Cable

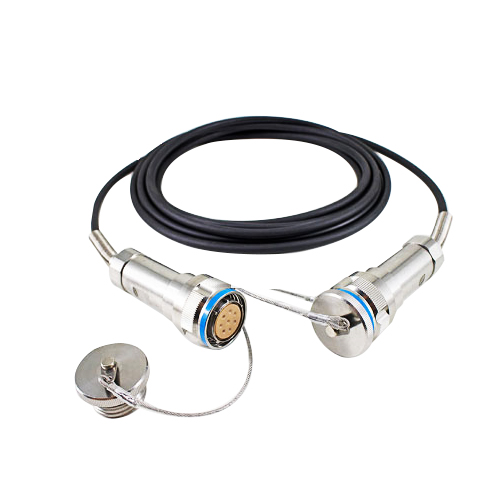

This J599 tactical fiber optic cable assembly provides eight optical channels through a rugged J599/A8 circular connector.

The HHD Fiber 8-core J599/A8 tactical fiber optic cable assembly provides eight optical channels in one rugged, pre-terminated connection. It is designed for tactical field communication, vehicle-mounted equipment, industrial control and temporary outdoor networks where secure mating and reliable optical transmission are required.

Discover the High-Performance J599 8-Core Tactical Fiber Cable

Engineered for rugged environments where durability and reliability are non-negotiable, this tactical fiber cable stands out as a top choice for high-demand scenarios. Featuring 8 cores, it delivers superior data transmission speeds—ideal for military operations, industrial settings, and demanding outdoor applications.
What sets it apart? Its integrated J599 connector, designed for outdoor resilience:
Waterproof & robust: IP67-rated for dust and water resistance, with a 316L stainless steel shell to withstand harsh conditions.
Precision engineering: Three-threaded quick-connect, five-button positioning to prevent blind or incorrect insertion, plus enhanced seismic resistance.
Advanced shielding: High-density contact parts with anti-electromagnetic interference (EMI) capabilities, ensuring stable signal transmission.
Versatile design: Field-installable (disassemblable cable assembly) and adaptable as a photoelectric hybrid connector, perfect for industrial equipment, marine/vehicle systems, and critical civil port connections.

Elevate your communication infrastructure with this robust, versatile tactical fiber cable—built to perform where it matters most.

Key Features

Eight optical channels: Supports multi-channel transmission and system redundancy without claiming a higher speed for each individual fiber.
J599/A8 rugged circular connector: Five-key polarization helps prevent incorrect mating.
Secure threaded coupling: A three-start thread design supports fast connection and helps resist loosening under shock and vibration.
Pre-terminated assembly

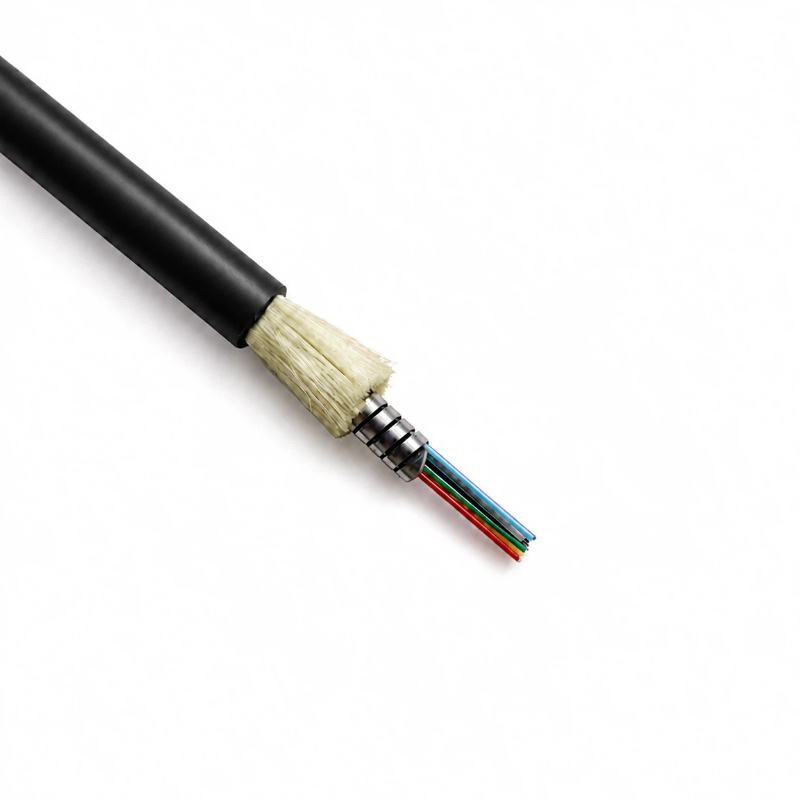

Rugged cable construction: Tight-buffered fibers and aramid yarn strength members provide tensile and mechanical protection.
TPU or LSZH jacket options: Select the jacket according to outdoor flexibility, abrasion resistance or low-smoke requirements.
Single-mode and multimode options: Available with 9/125 µm, 50/125 µm or 62.5/125 µm fiber.
Custom configuration: Cable length, connector arrangement, fiber type, jacket and fan-out termination can be specified for each project.

Typical Applications

Tactical and outdoor field communication systems
Vehicle-mounted communication equipment
Mobile command and emergency communication networks
Industrial control and outdoor equipment
Temporary and rapidly deployable fiber links
Rugged fiber interconnections in demanding environments

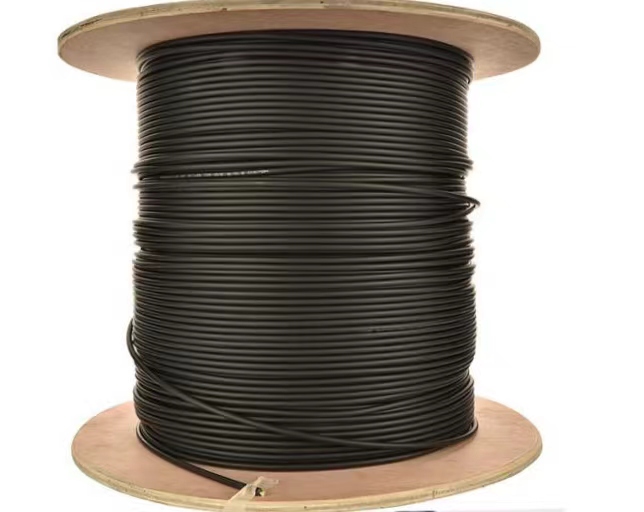

8 Core Armored TPU Tactical Fiber Cable----TPU jacket

8 Core Tactical Fiber Optic Cable Specifications

Parameter	Specification
Cable Type	Outdoor Armored Fiber Optic Cable 8 Core/8 fibers / 8 optical channels
Cable Count	8 Core8 fibers / 8 optical channels
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ5.0 ± 0.2 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 800 N (Short-Term)
	≥ 500 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable),ODC,J599/A8 rugged circular fiber connector
Cable Weight	33kg/km

J599 A8 rugged fiber patch cable

Connector	Single mode	Multimode
Insertion Loss	≤0.55	≤0.75
Return Loss	>or=50dB	>or=60dB
Durability	(1000matings)
Operating Temperature	-40C~+80C
Protection level	IP67
Fible Type	Tight-Buffered fiber
Cable Jacket	TPU
Fible Count	Single core fiber/Multimode fiber

Specifications may vary according to fiber type, jacket, connector shell and assembly configuration. Final performance should be confirmed against the approved drawing and quotation.

J599 A8  Series Connector

J599 Plug

J599 socket

J599 PLUG to PLUG

j599 8 strand tactical fiber cable

Frequently Asked Questions

Does an 8-core tactical fiber cable provide higher transmission speed?

The eight fibers provide eight optical channels or additional redundancy. The transmission speed of each channel depends on the selected fiber, transceivers and network equipment.

Is this cable available in single-mode and multimode versions?

Yes. Single-mode 9/125 µm and multimode 50/125 µm or 62.5/125 µm configurations are available. Please specify the required fiber grade when requesting a quotation.

Is the assembly supplied pre-terminated?

Yes. Plug-to-plug and plug-to-receptacle assemblies can be factory terminated. Custom fan-out ends may also be quoted according to the project requirements.

Is the connector waterproof?

The current configuration is specified with IP67 protection when correctly mated. Protection while unmated, capped or under continuous immersion depends on the selected connector and cap configuration.

Request a Custom Quote

Please provide:

Fiber type
Required cable length
Connector type at both ends
Mating connector part number

Required quantity
